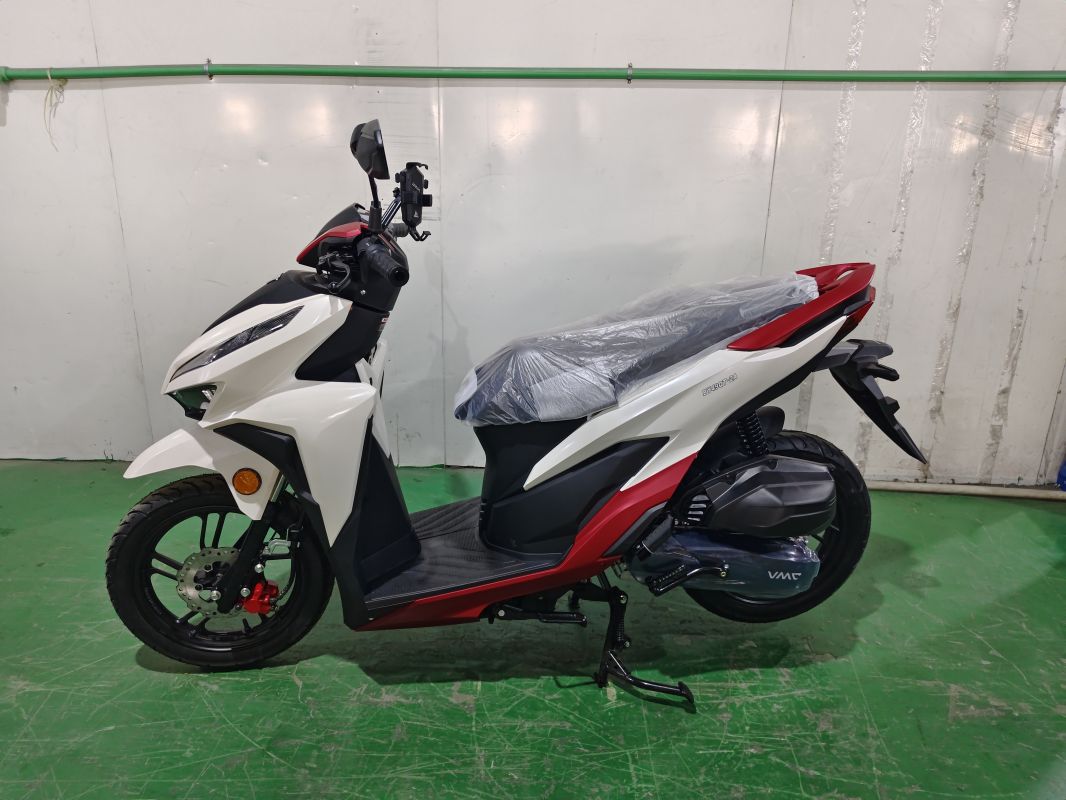

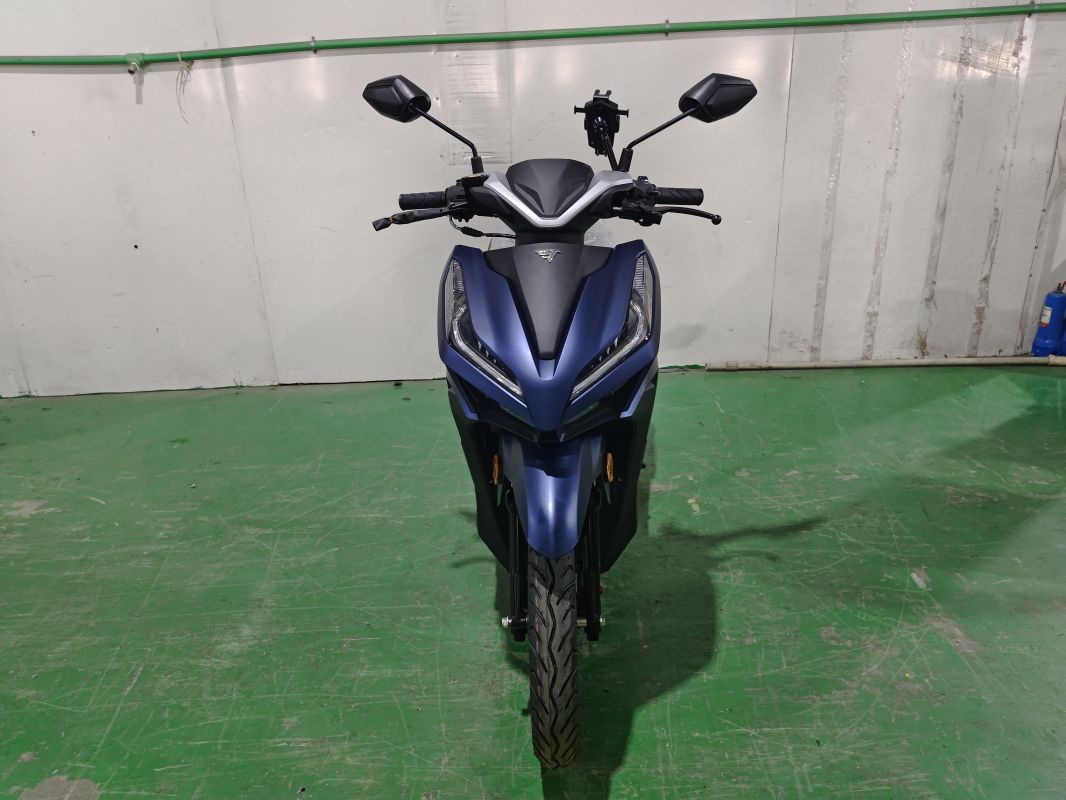

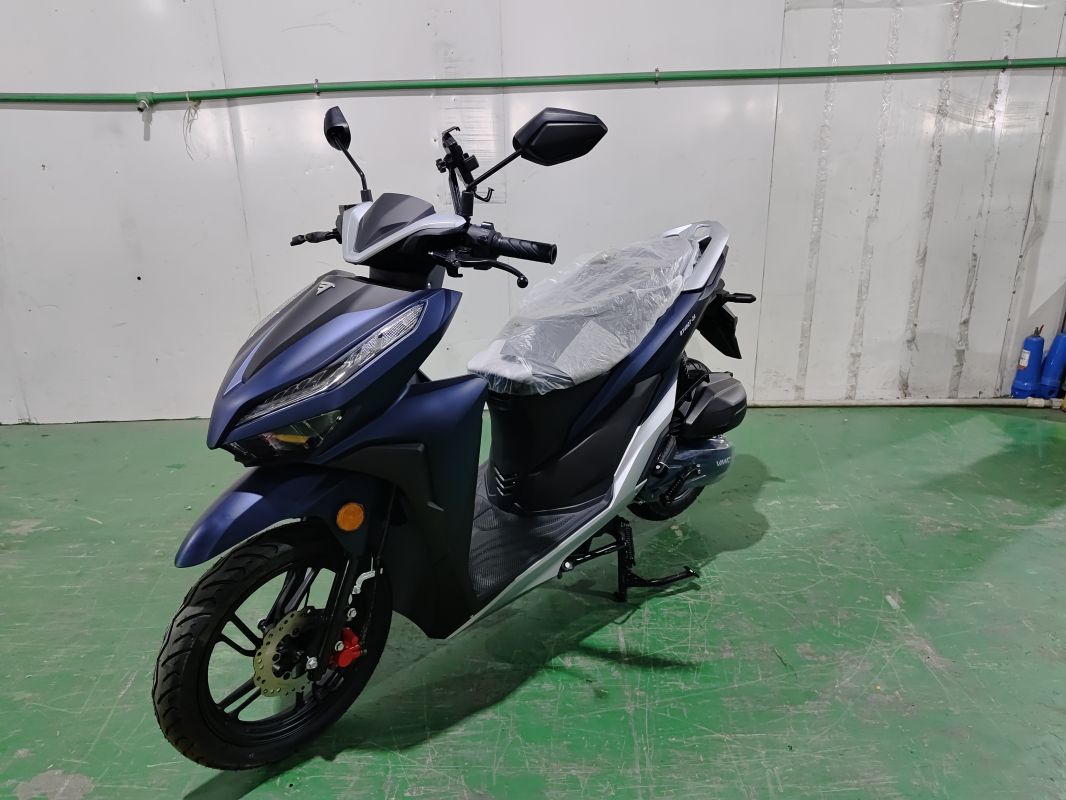

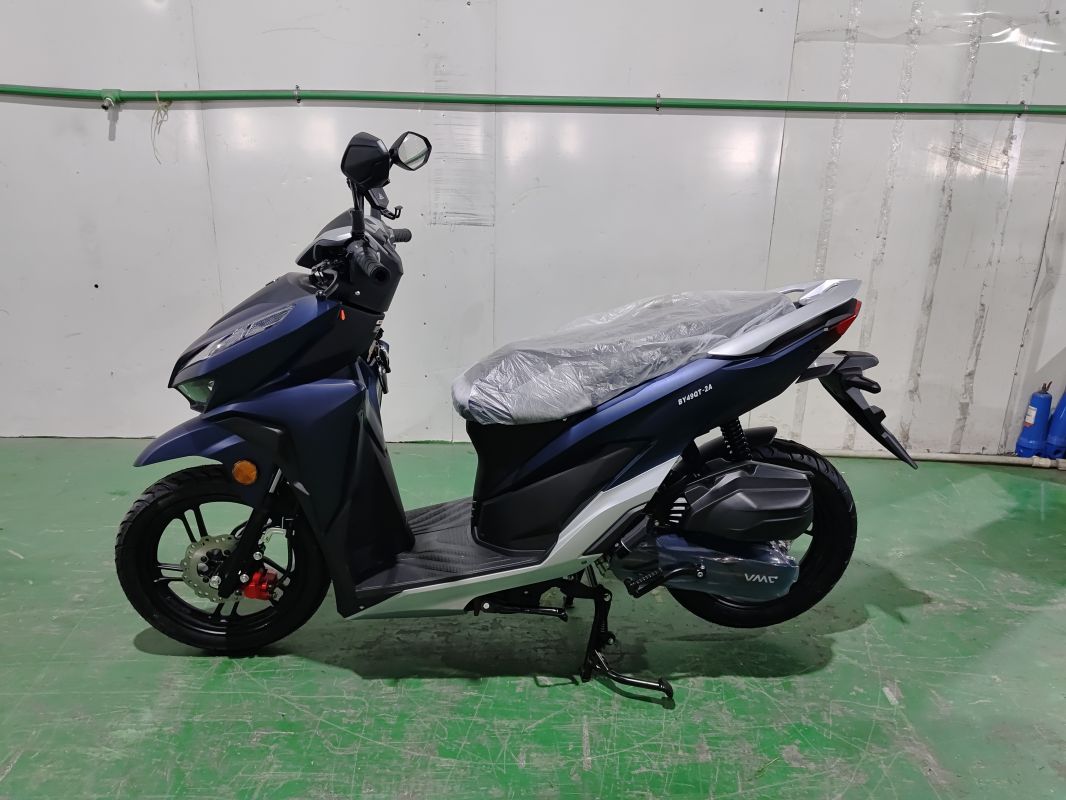

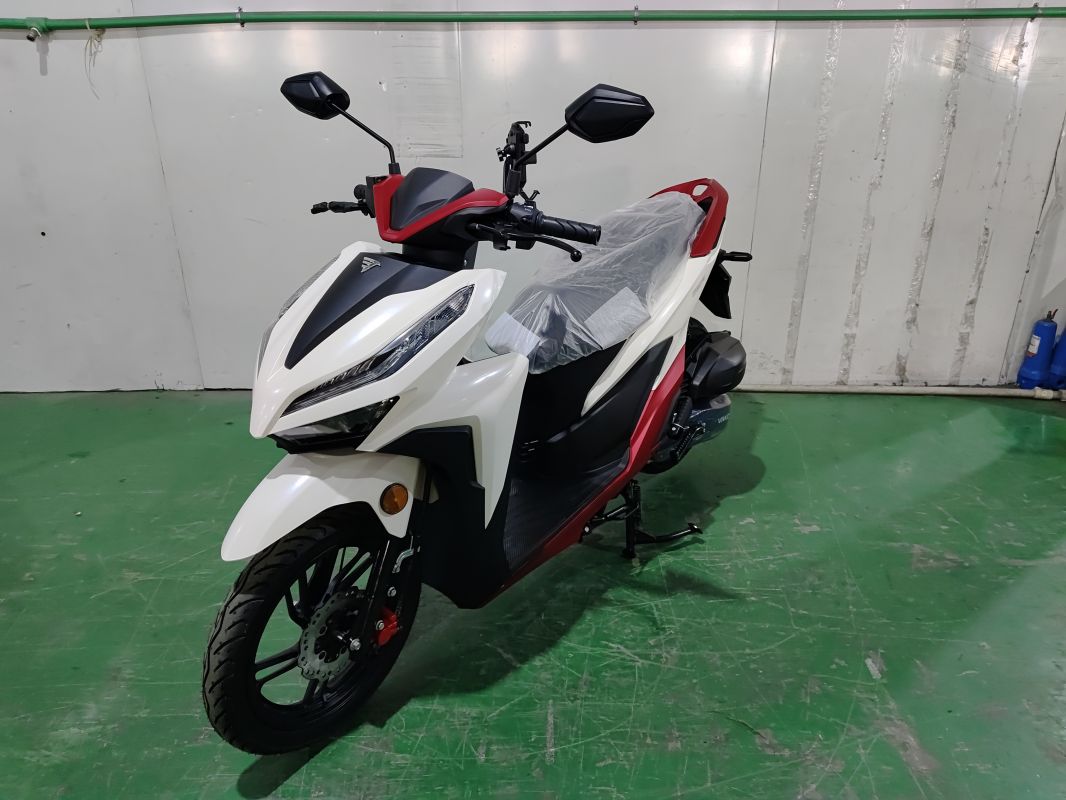

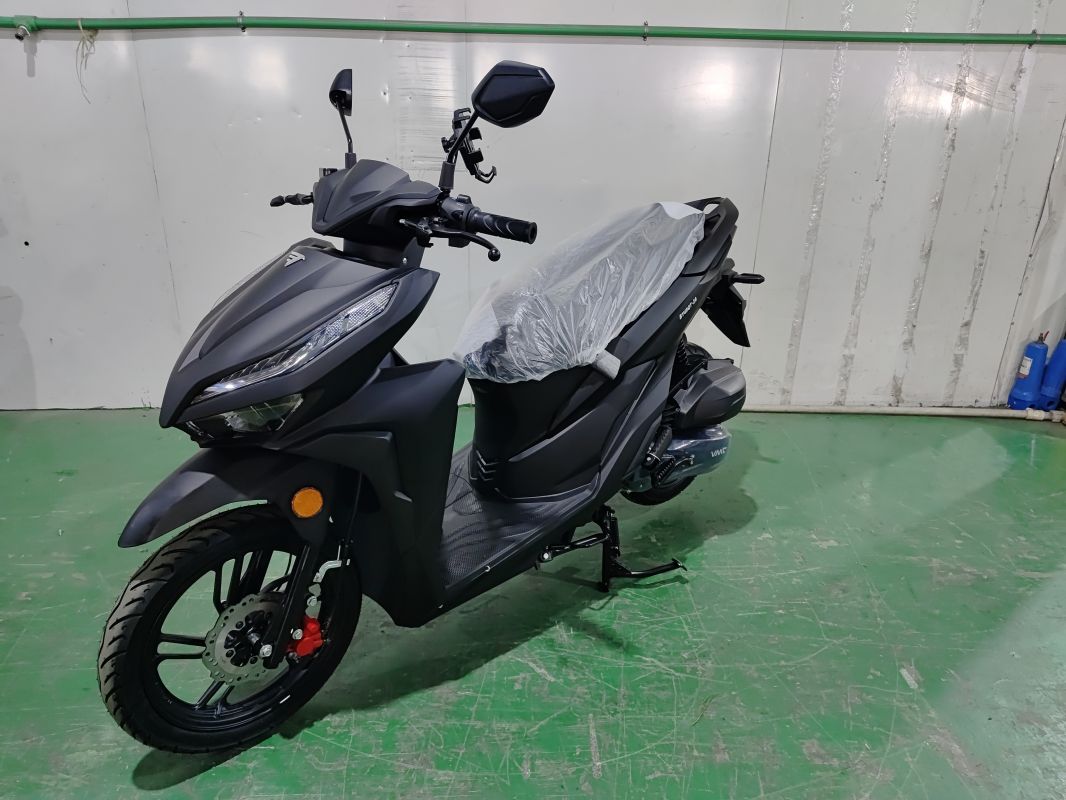

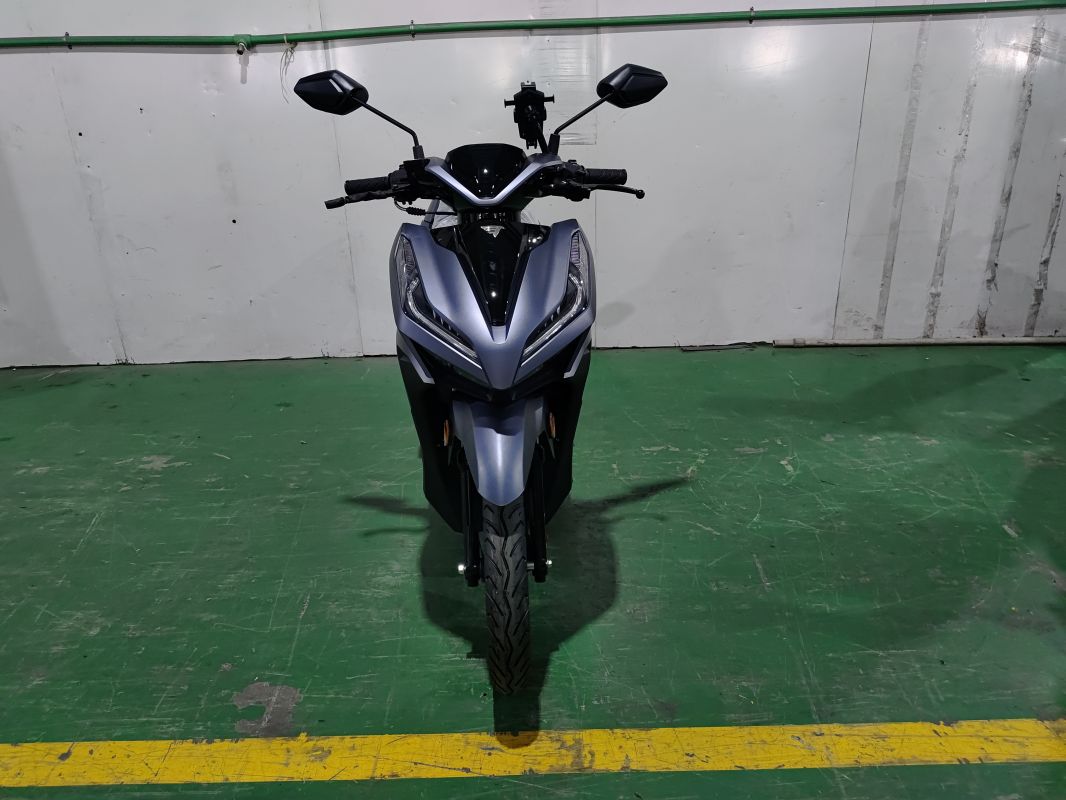

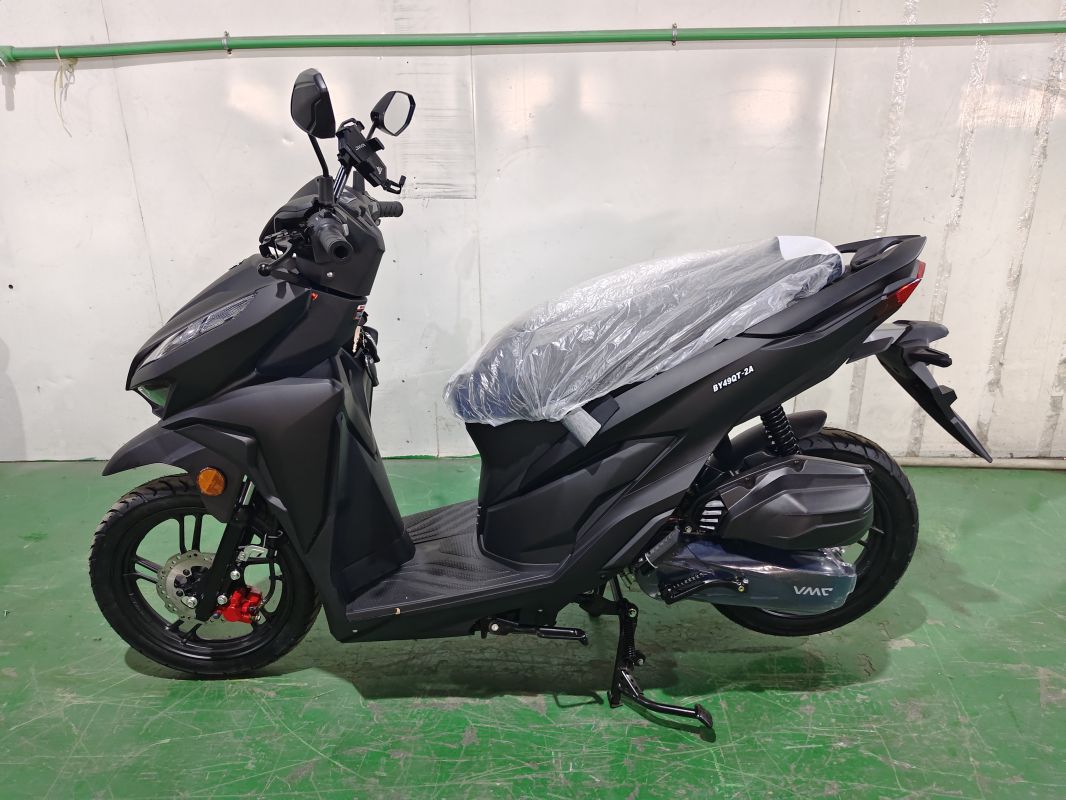

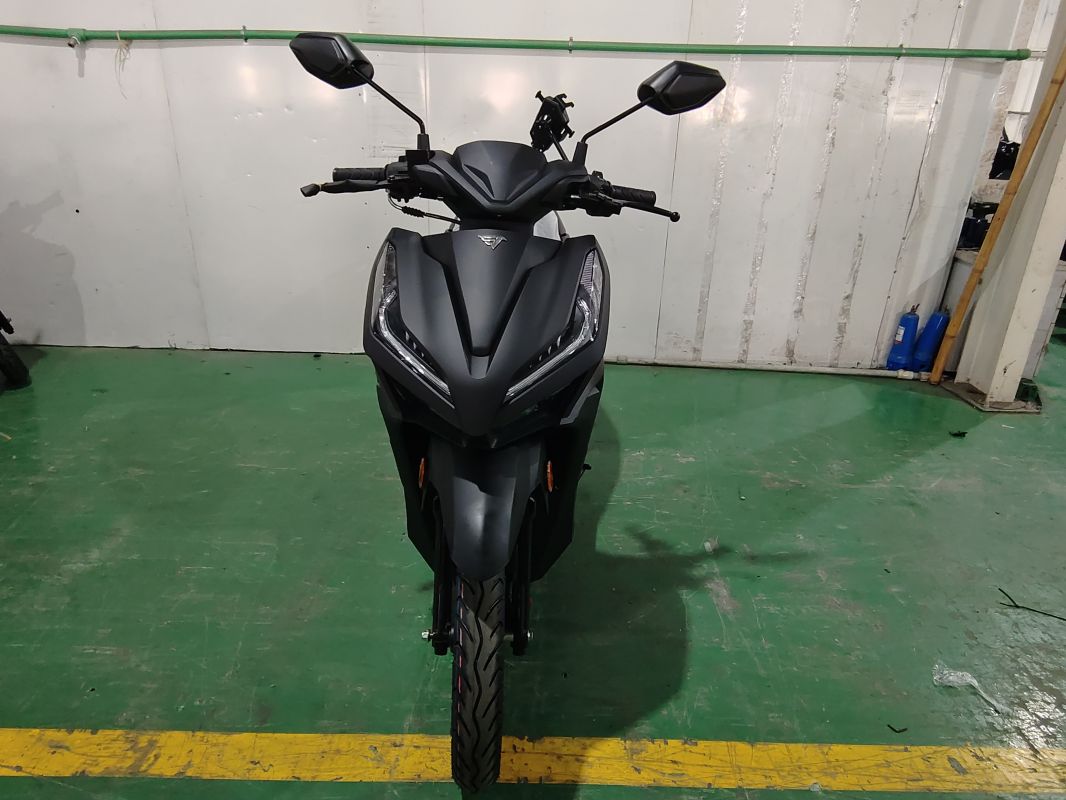

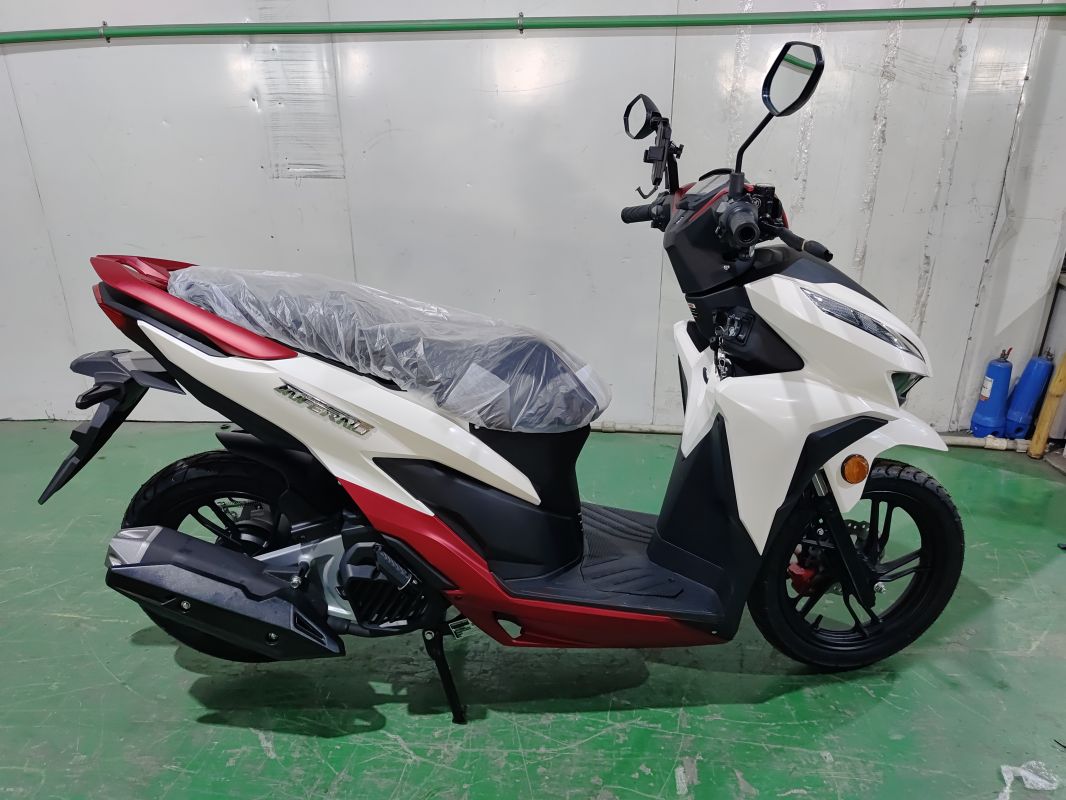

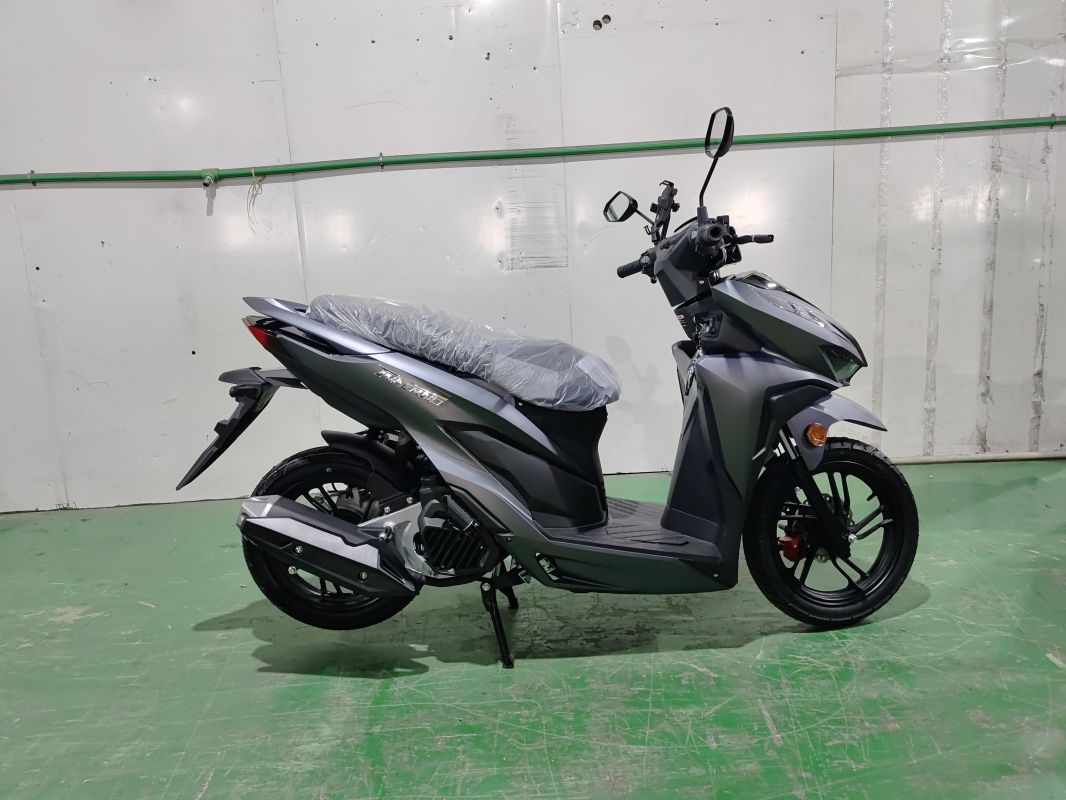

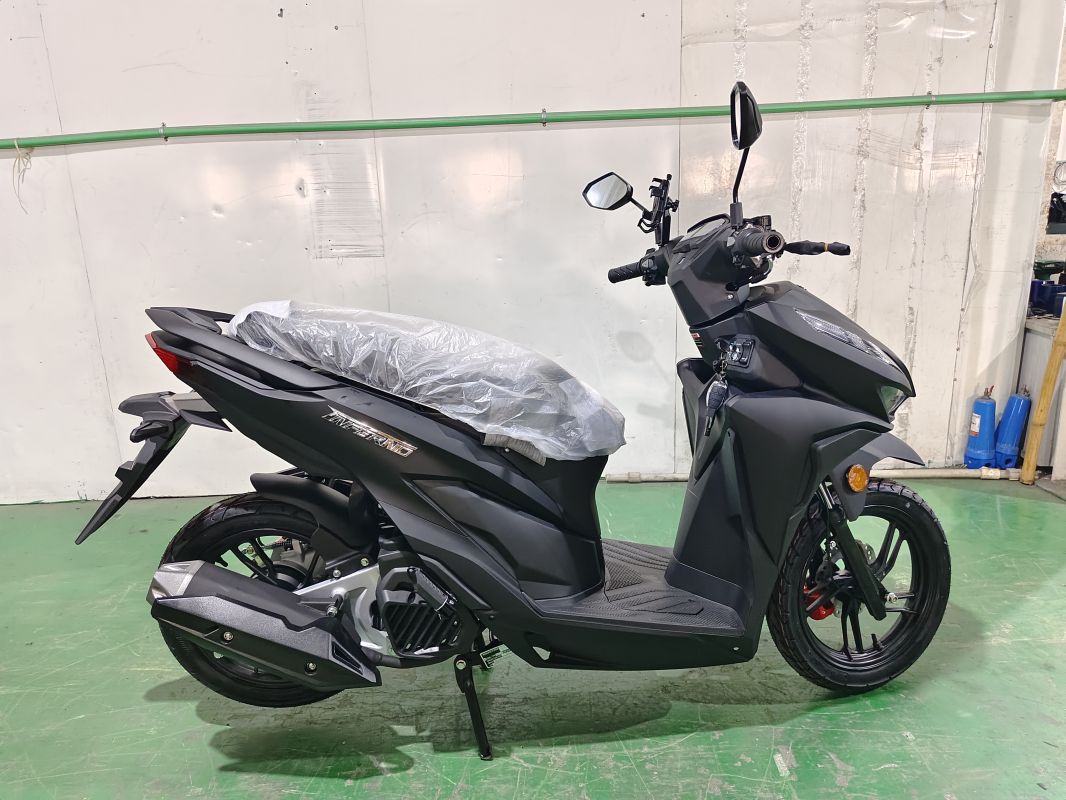

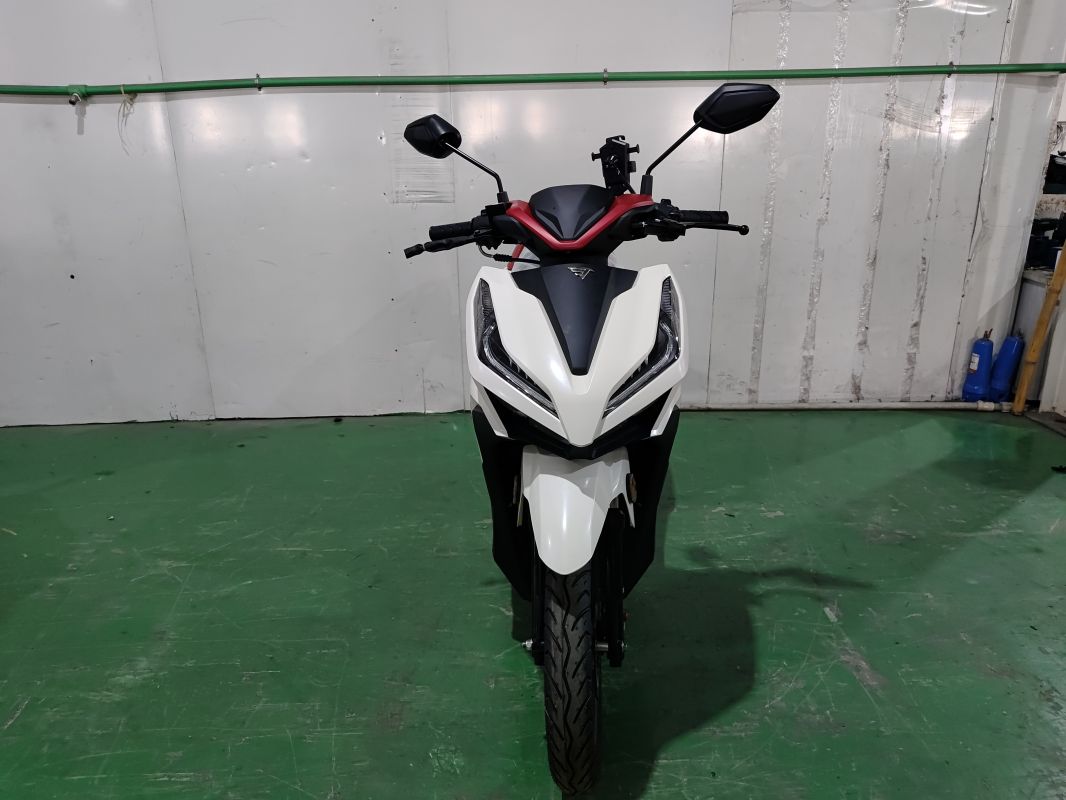

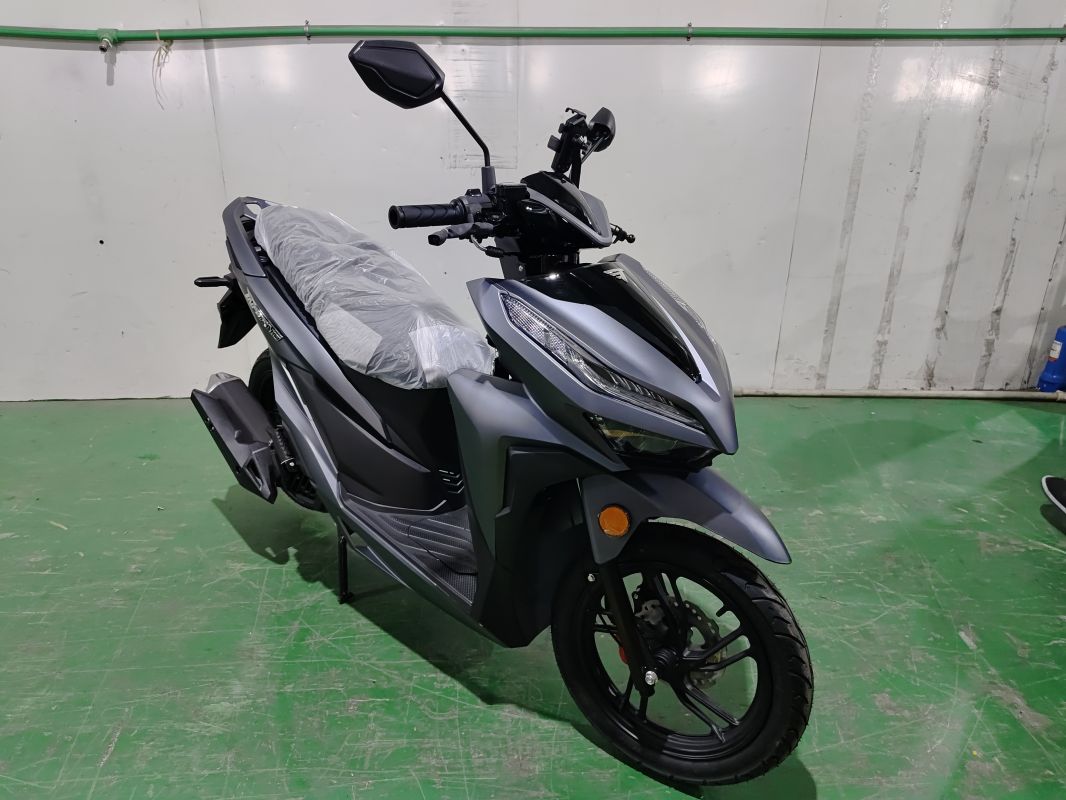

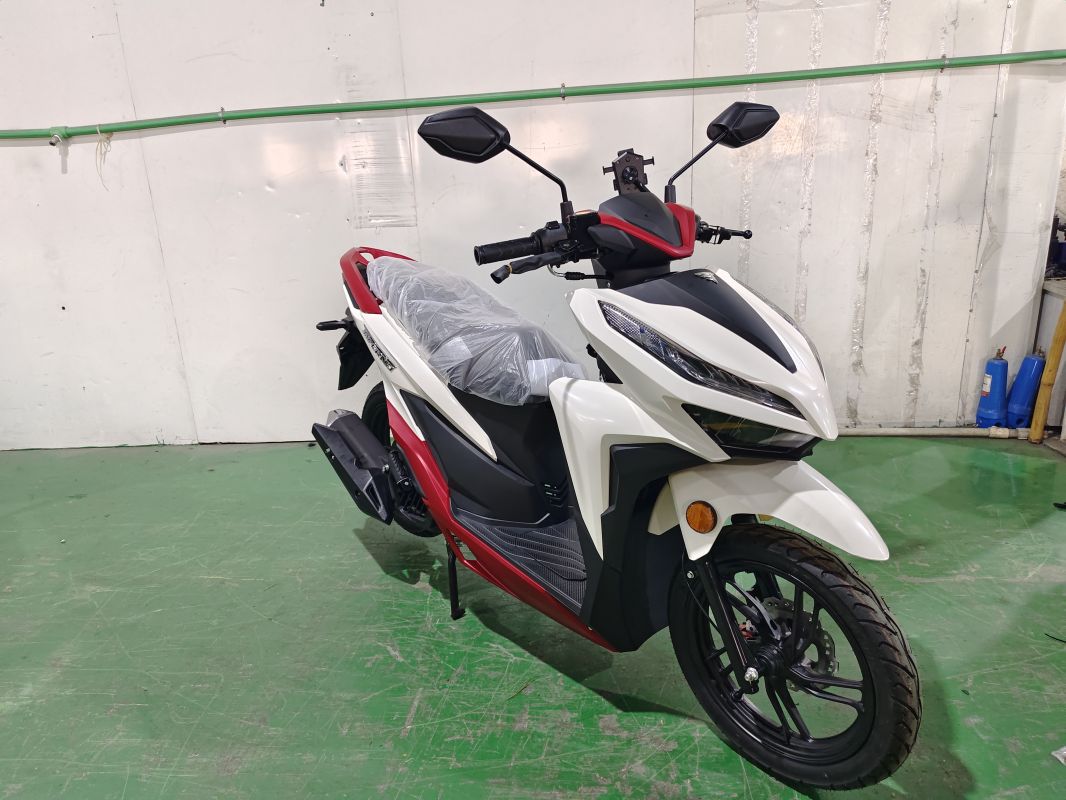

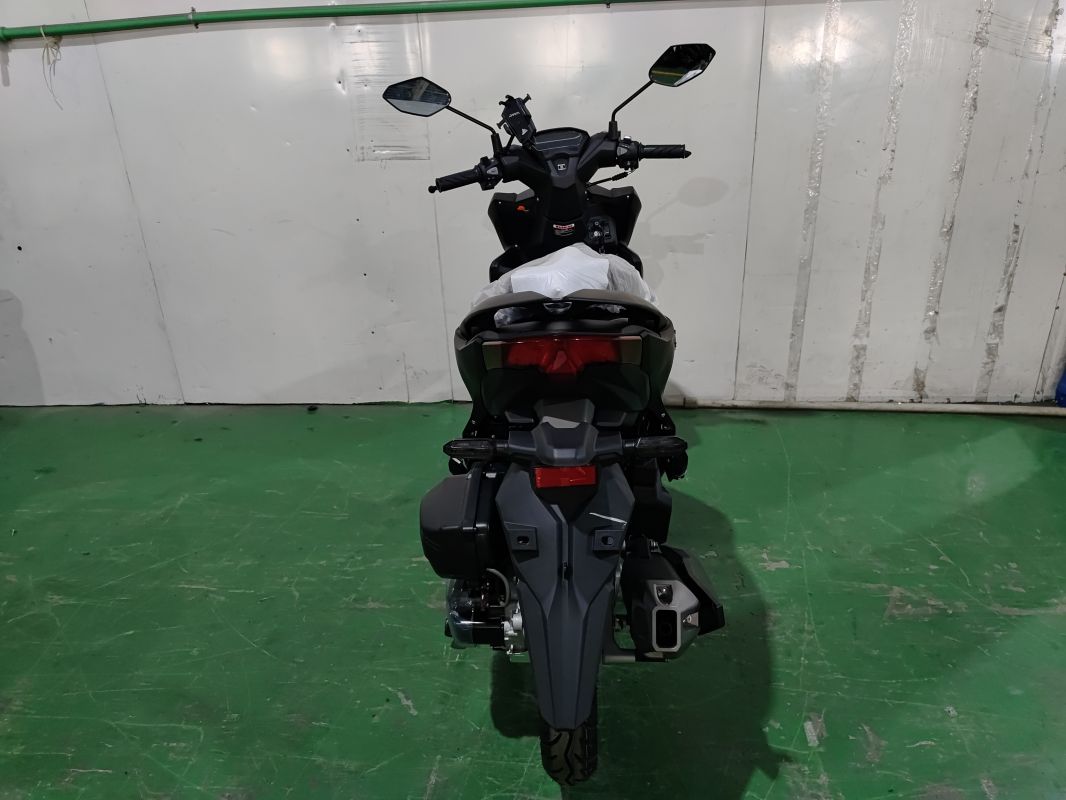

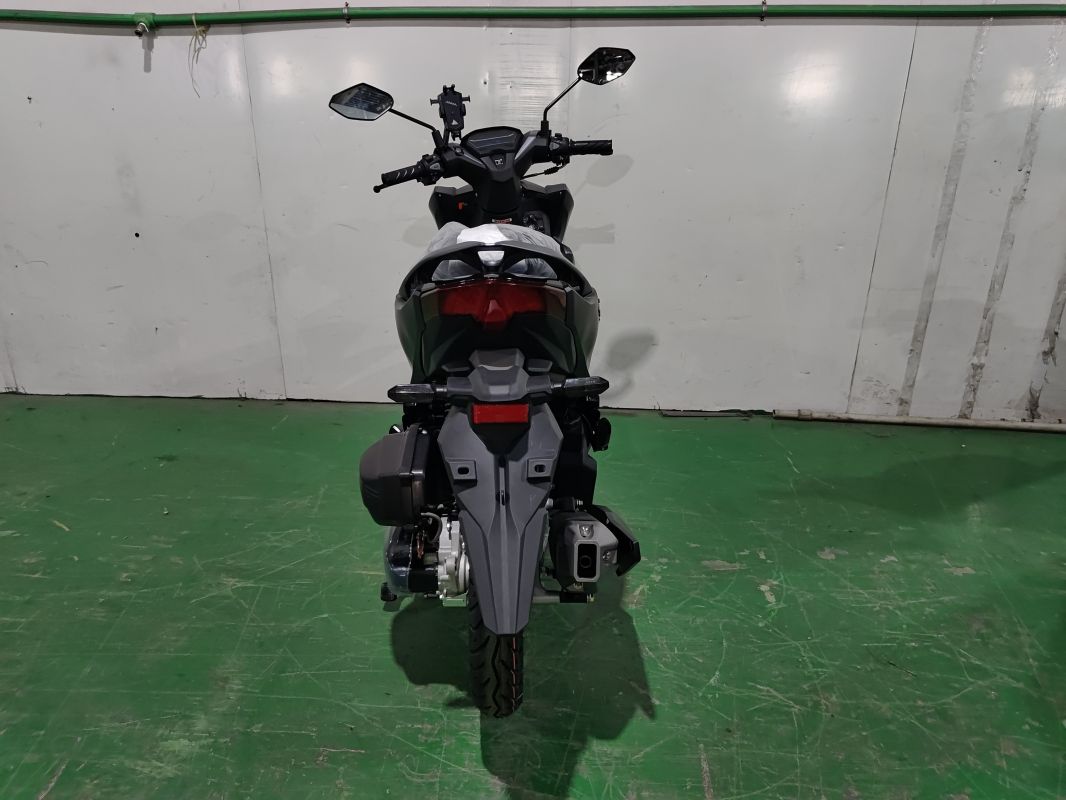

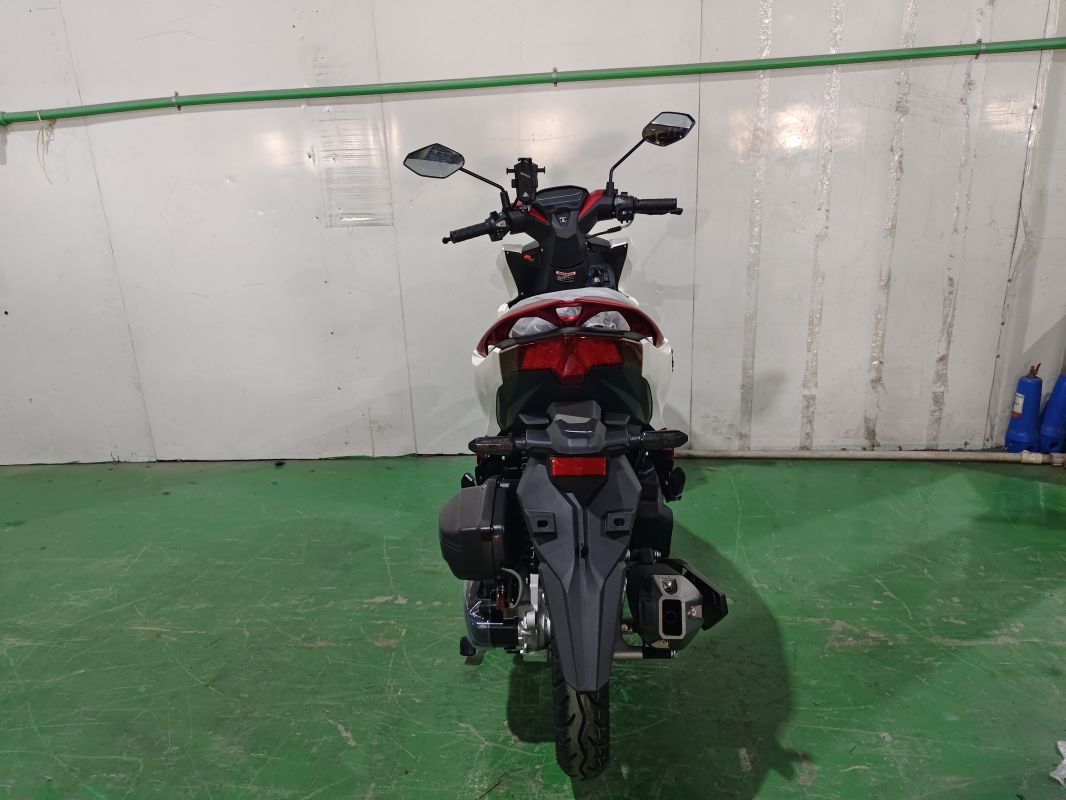

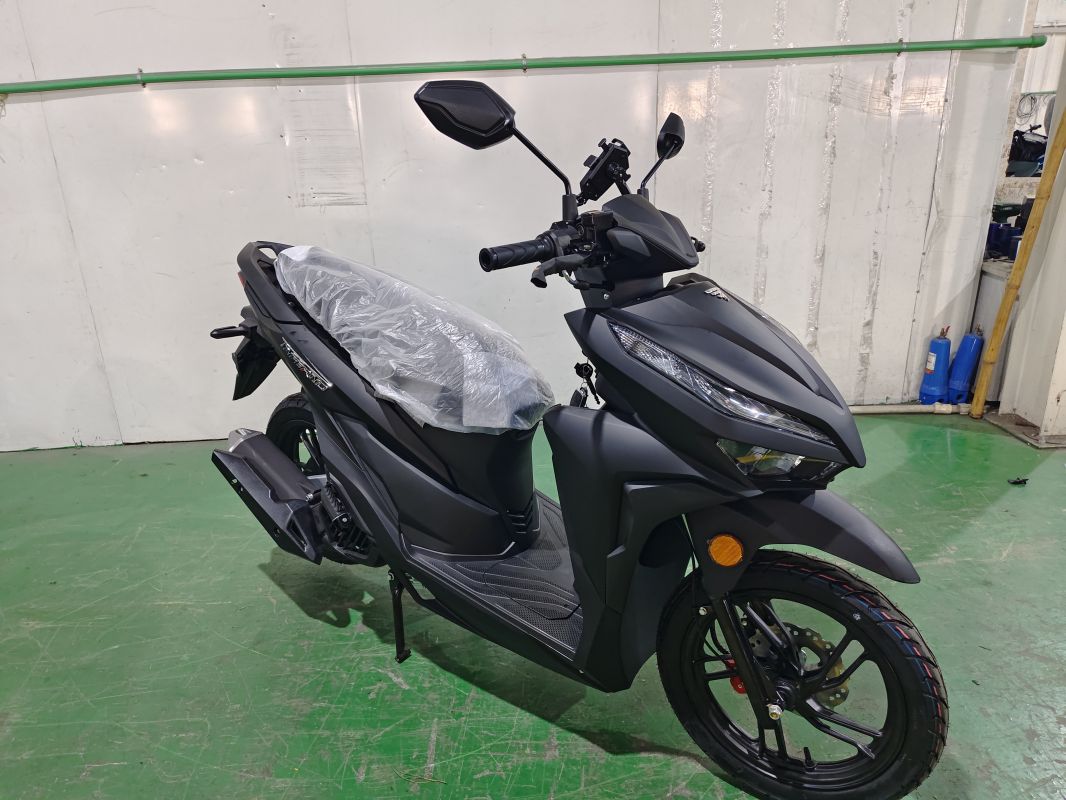

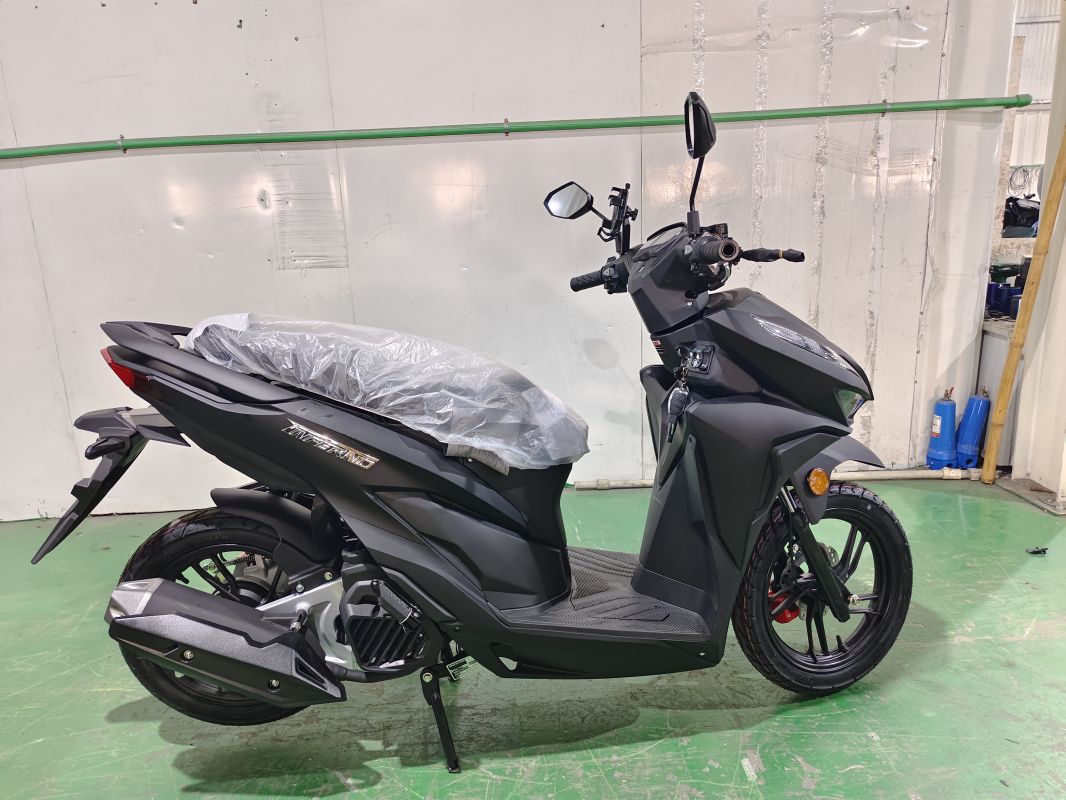

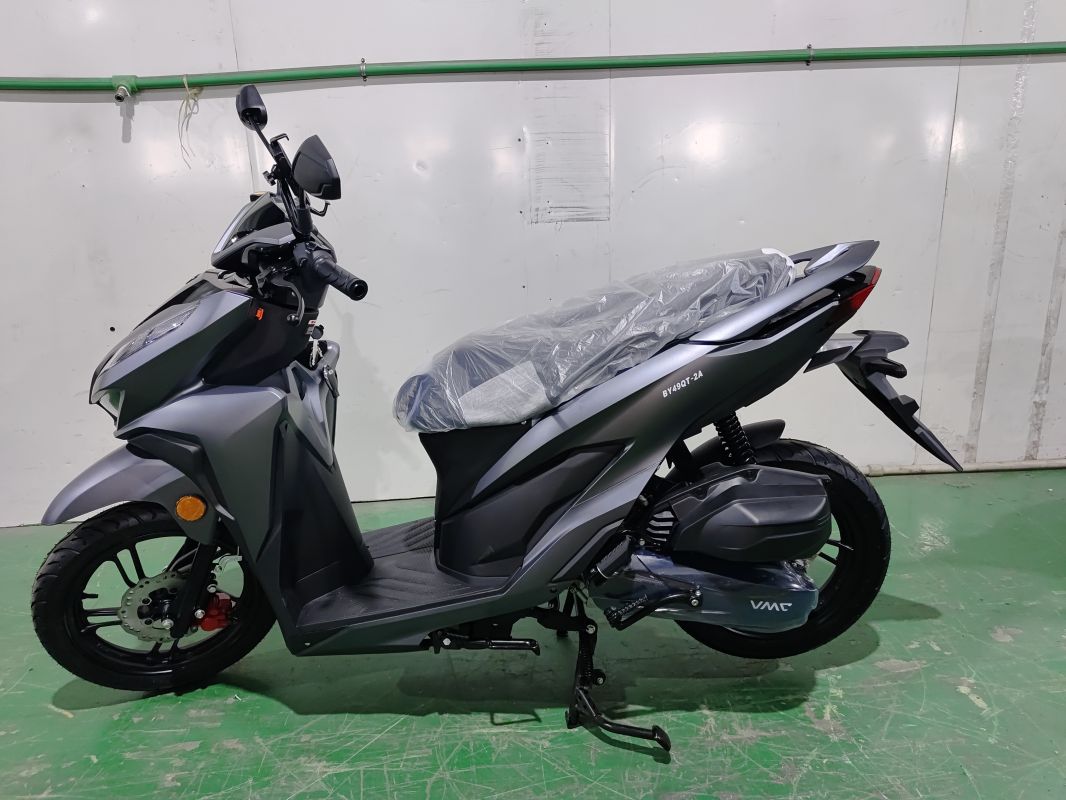

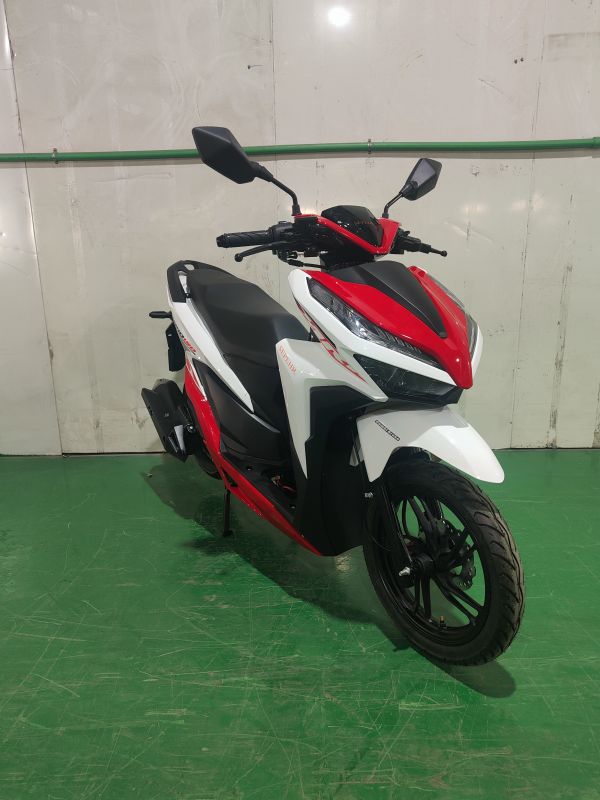

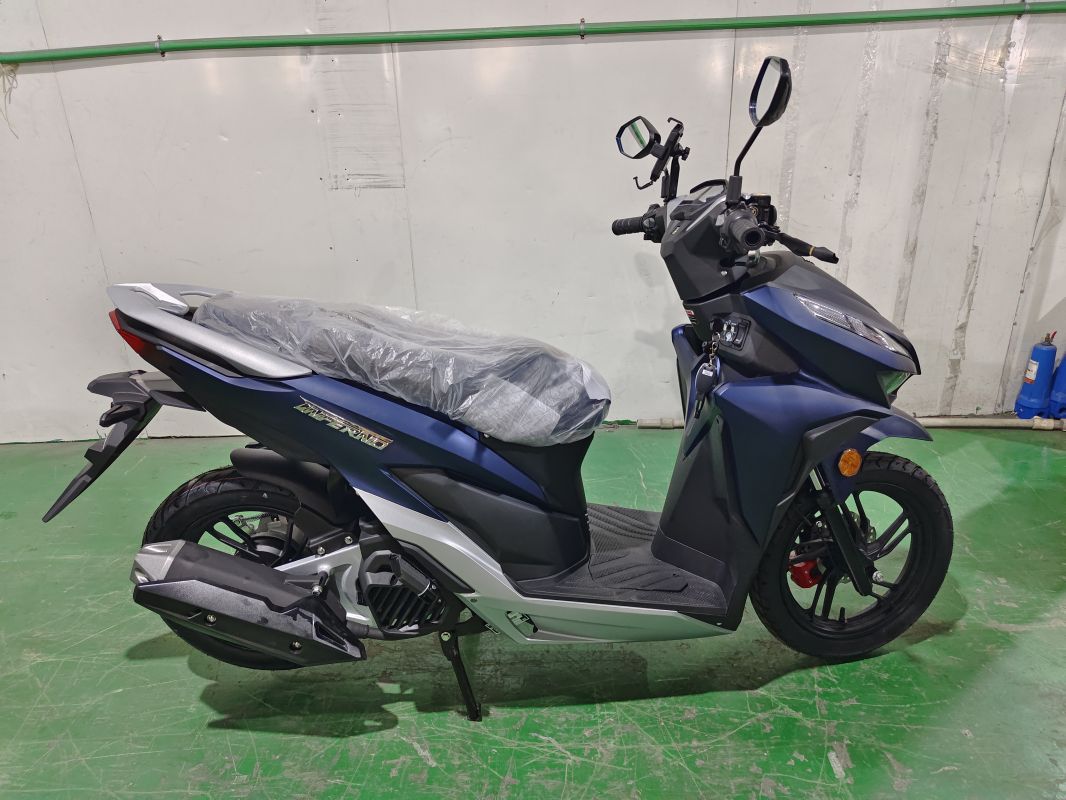

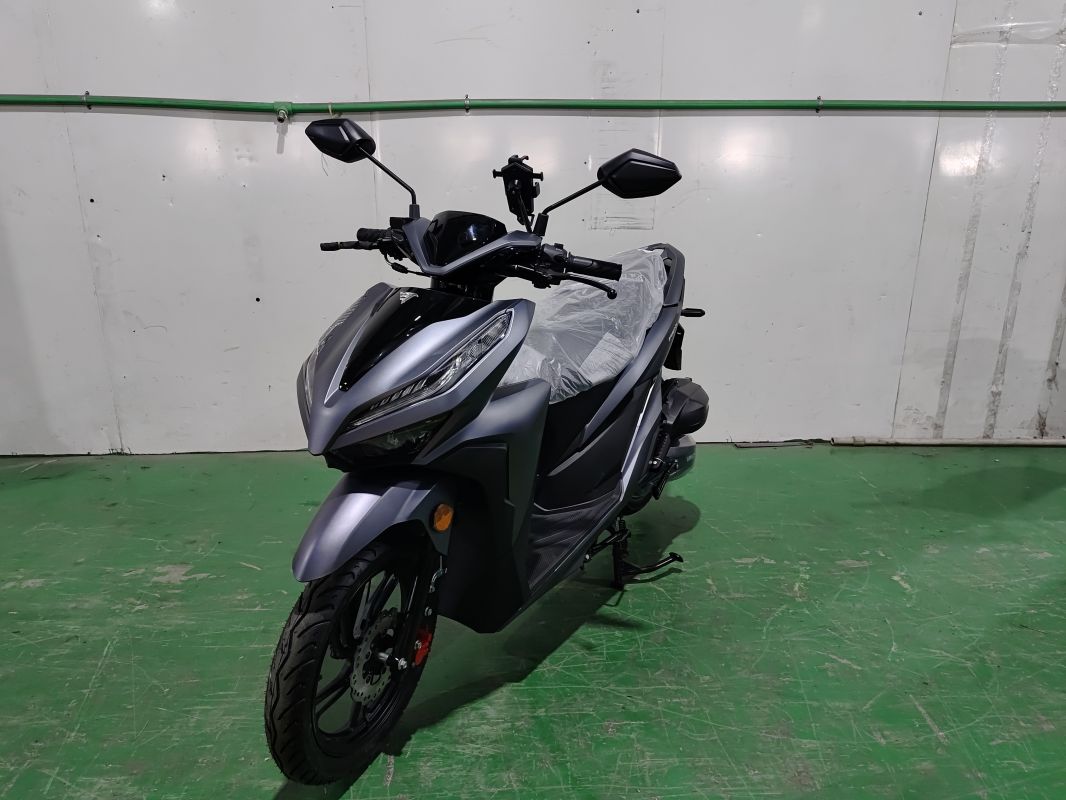

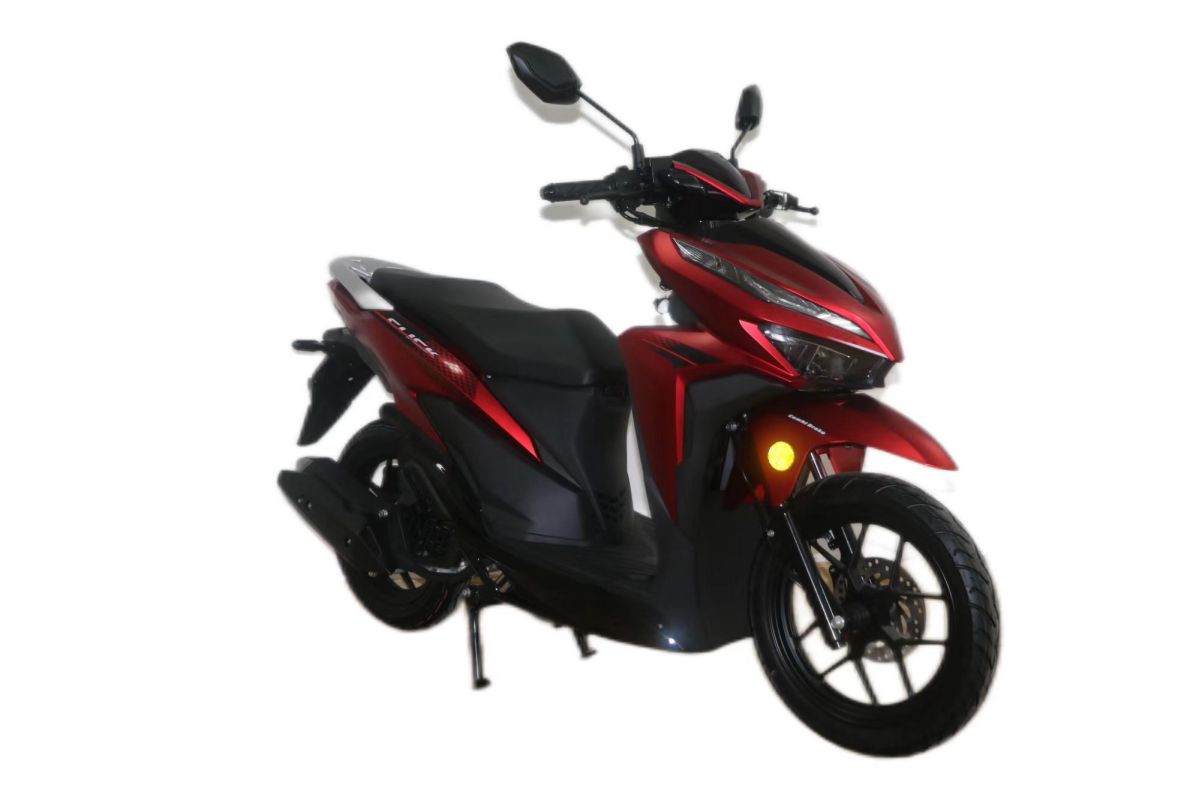

Vuorio
|
GY6 /125 |
|
Single Cylinder，four stroke，forced air cooling，horizontal |
| Power System | |

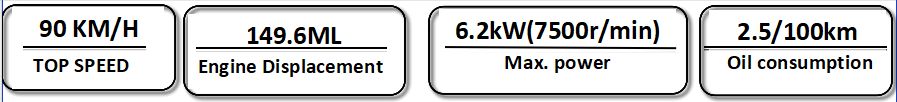

| Maxium Speed | 90 Km/h |
| Cylinder Bore | 57.4mm |
| Piston Stroke | 57.8mm |
| Compression Ratio | 9.2:1 |
| Ignition Type | ECU |
| MAX Power | 6.2kw (7500r/min) |
| MAX torque | 8.5N.M (6000R/min) |
| Tank Capacity | 4.8L |
| Oil consumption |
3.0L/100km（carburetor） 2.5L/100km (EFI) |
| DIMEMSION | |
| L*W*H | 2070×730×1130mm |
| Wheelbase | 1475mm |
| Min.Ground Clearance | 130mm |

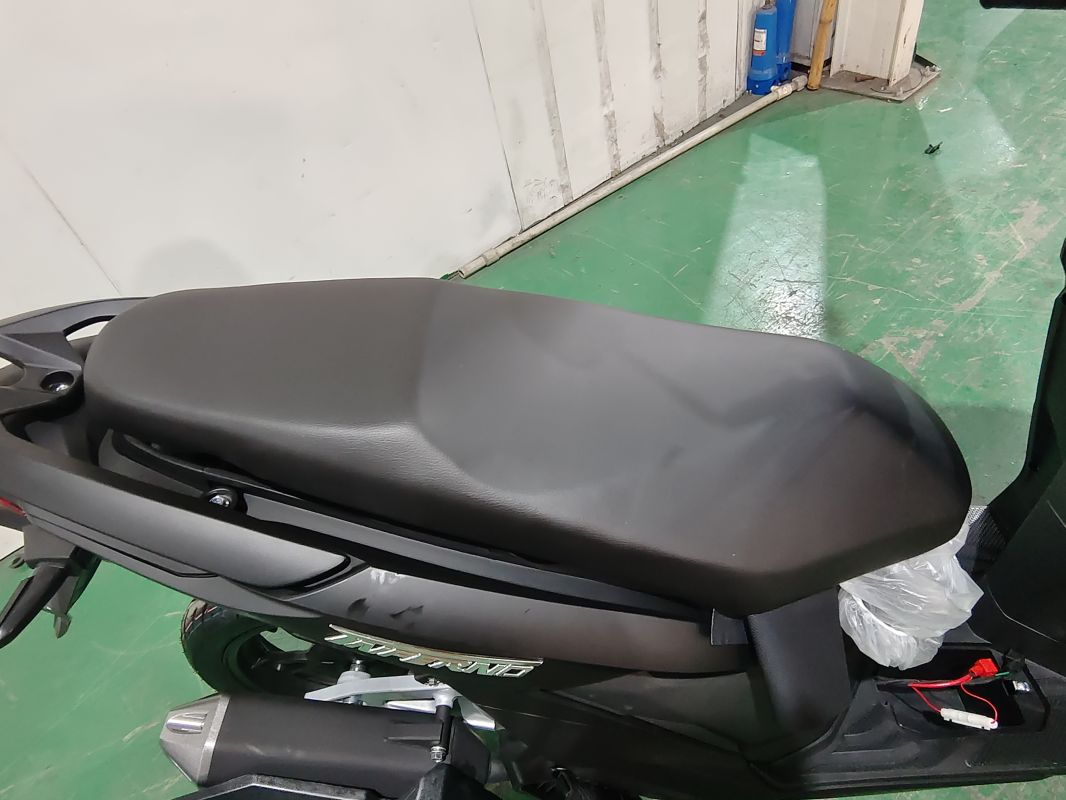

| Seat Height | 770mm |
| Net Weight | 110kg |
| Framework | |
| Front Shock Absorber | straight cylinder hydraulic L:420 |
| Rear Shock Absorber | single shock absorber bolded spring L: 325 |
| Front/Rear Tire Spec | Vacuum tire front: 80/90-14 rear:100/80-14 |
| Braking Mode | front disc rear drum CBS |
| rim | Alu. Alloy front:14×MT1.85 rear:14×MT2.50 |
| Frame material | High quality carbon steel |
| Battery | 12V-7A |
GY6/150CC 161/170 configuration are available
EFI Carburetor configuration optional
