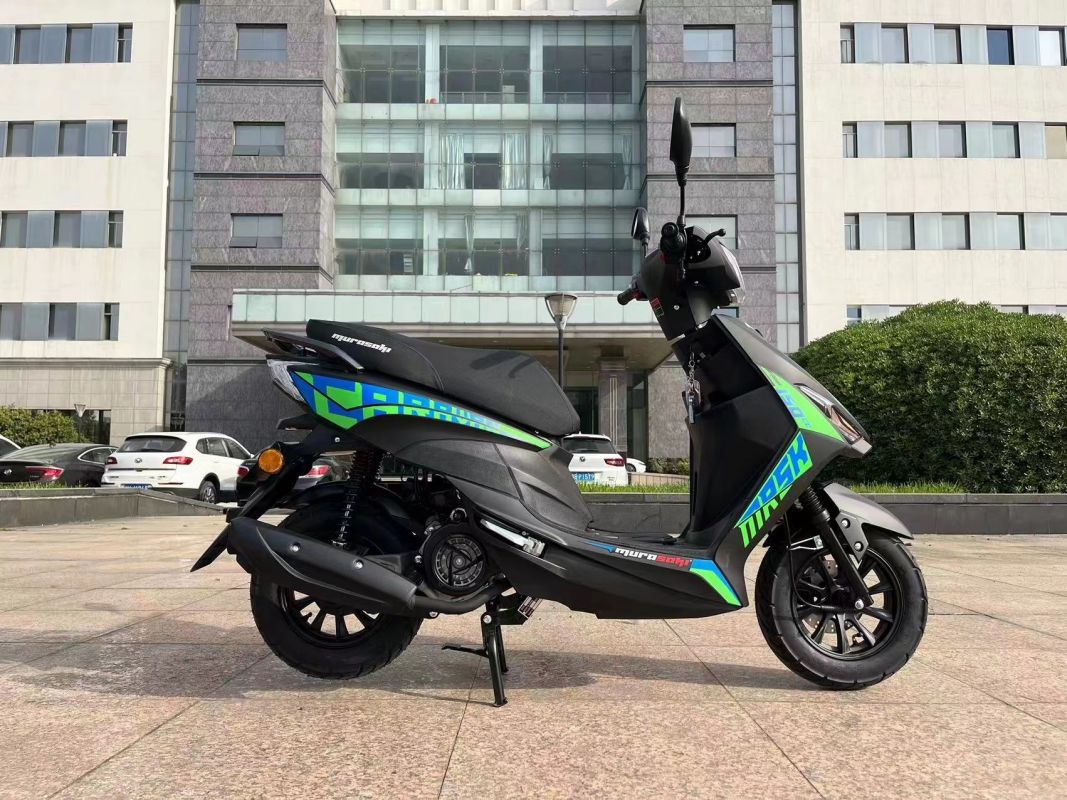

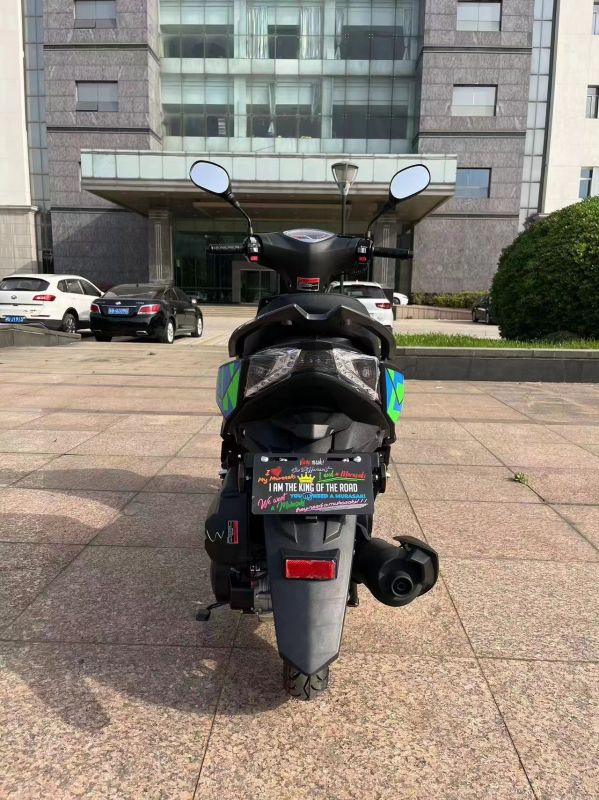

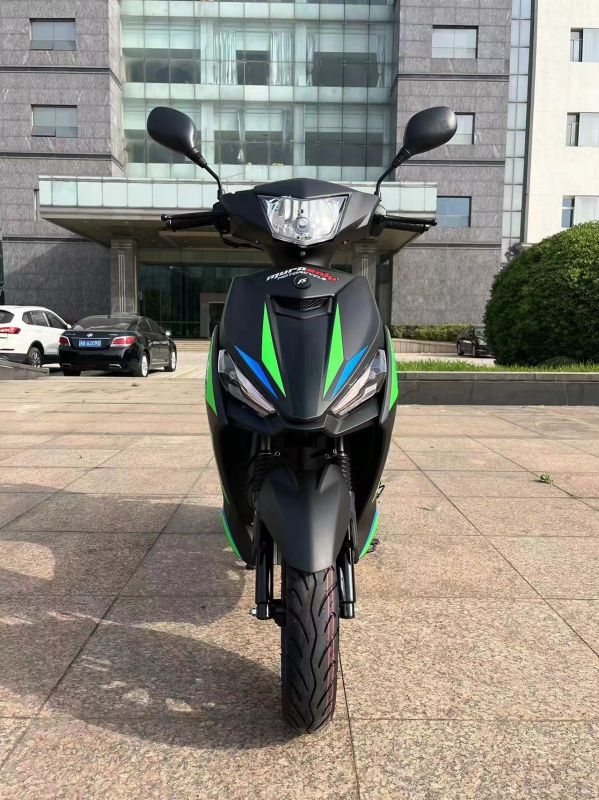

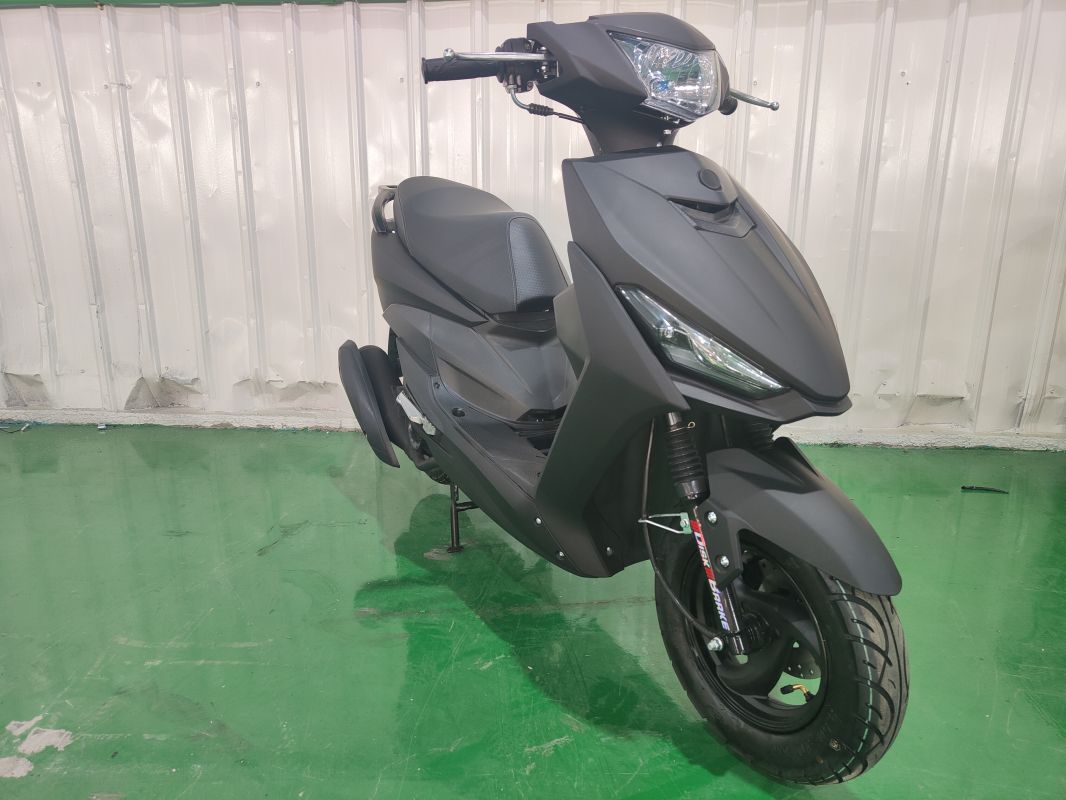

XQG
|

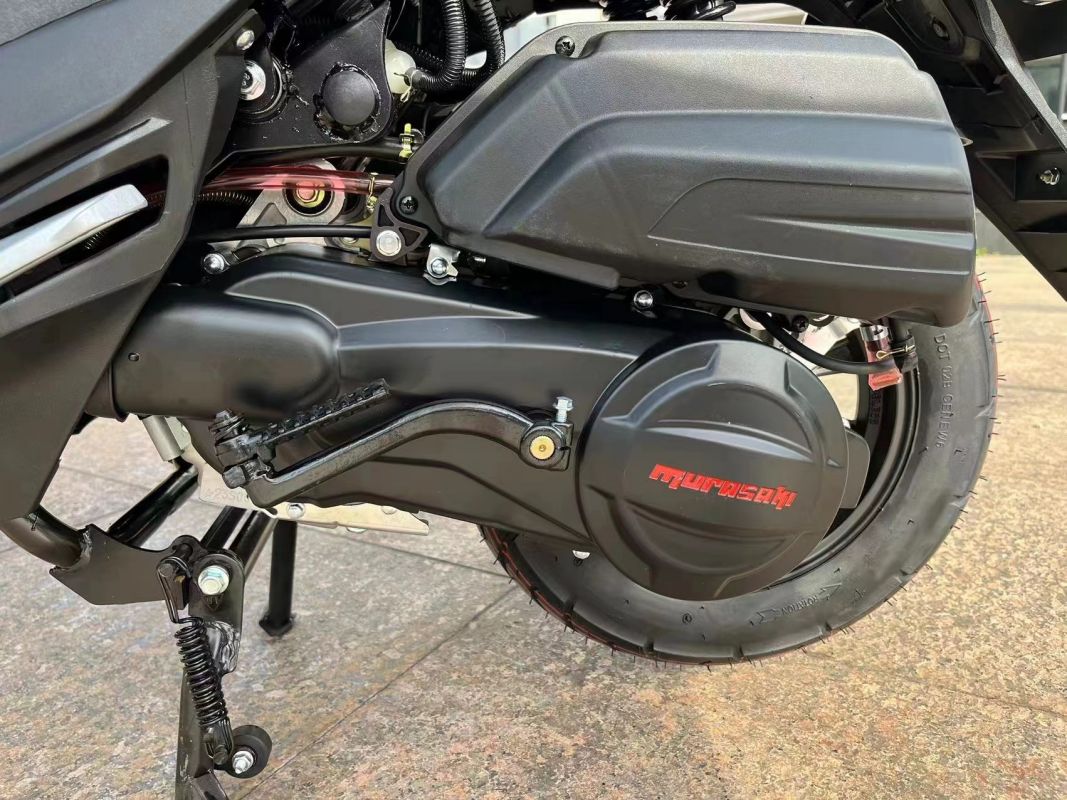

GY6 /125 |
| Single Cylinder，four stroke，forced air cooling，horizontal |
| Power System | |

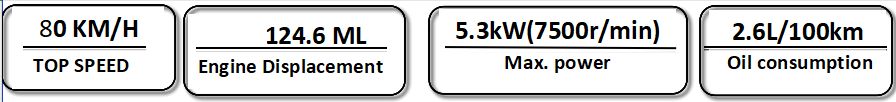

| Maxium Speed | 80 KM/H |
| Cylinder Bore | 52.4mm |
| Piston Stroke | 57.8mm |
| Compression Ratio | 9.2:1 |
| Ignition Type | ECU |
| MAX Power | 5.6kw (7500r/min) |
| MAX torque | 7.3N.M (6500R/min) |
| Tank Capacity | 4.8L |
| Oil consumption |
2.3L/100km 2.8L/100km(Carburetor) |
| DIMEMSION | |
| L*W*H | 1770mm ×670m ×1190mm |
| Wheelbase | 1190mm |
| Min.Ground Clearance | 140mm |
| Seat Height | 750mm |
| Net Weight | 98kg |
| Framework | |
| Front Shock Absorber | straight cylinder hydraulic L:360 |

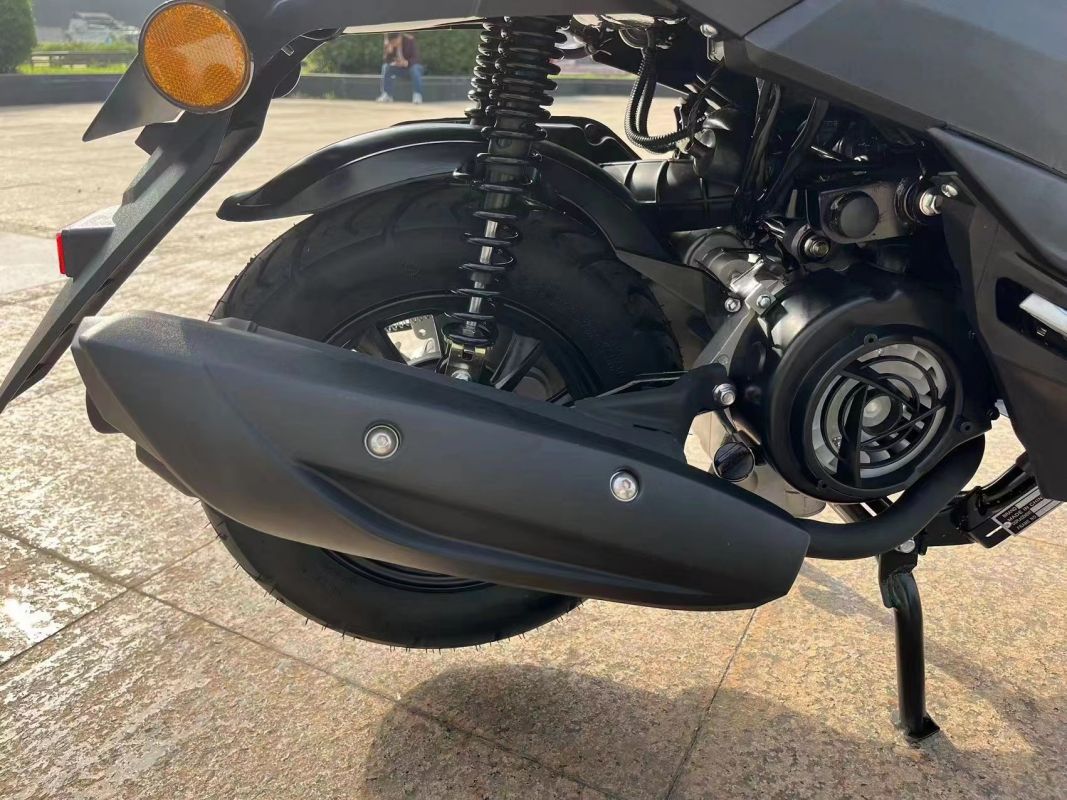

| Rear Shock Absorber | double shock absorber densed spring L:307 |

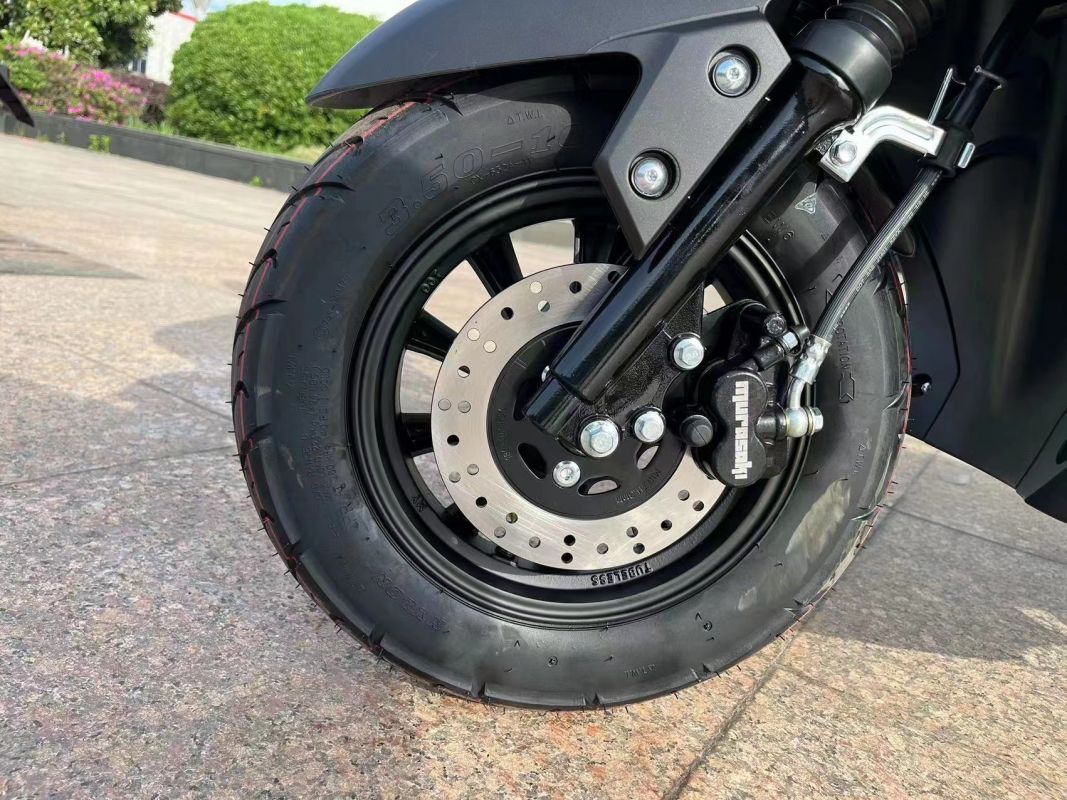

| Front/Rear Tire Spec | Vacuum tire front: 3.50-10 rear:3.50-10 |
| Braking Mode | front disk rear drum |
| rim | Alu. Alloy front:10×MT2.50 rear:10×MT2.50 |
| Frame material | High quality carbon steel |
| Battery | 12V-7A |
50CC 150CC configuration are available
EFI Carburetor configuration optional
